Vibration motor Module
1.00 د.ك

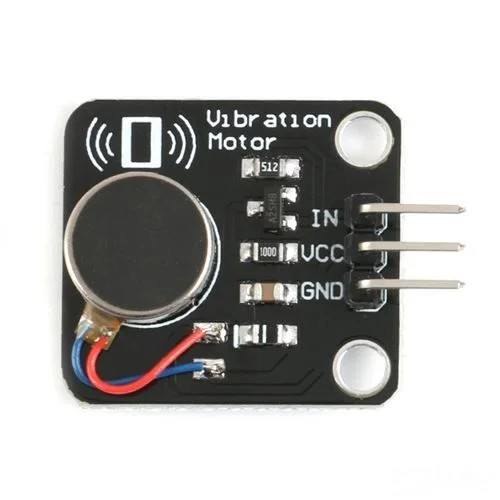

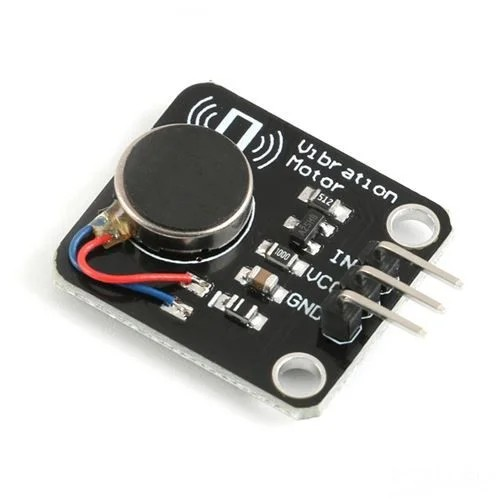

This module features a high-quality vibration motor that provides a strong and noticeable vibration effect, powered by a MOS amplification drive
In stock
Description
This module features a high-quality vibration motor that provides a strong and noticeable vibration effect, powered by a MOS amplification drive. The motor can be easily controlled through the digital port of an Arduino board, with the ability to adjust the vibration intensity using PWM. With this module, it is convenient to convert electrical signals into mechanical vibration, making it ideal for producing vibrational and dynamic interactive products, wearable smart device reminders, and for use as a non-audible indicator. When the input signal is set to high, the motor will vibrate.
Product parameter:
Rated voltage: 5.0VDC
Operating voltage: 3.0-5.3VDC
Rated speed: minimum 9000 rpm
Rated current: 60 mA max
Starting current: 90 mA max
Starting voltage: DC3.7V
Insulation resistance: l0Mohm
Compatibility: compatible with UNO R3/ Mega2560
