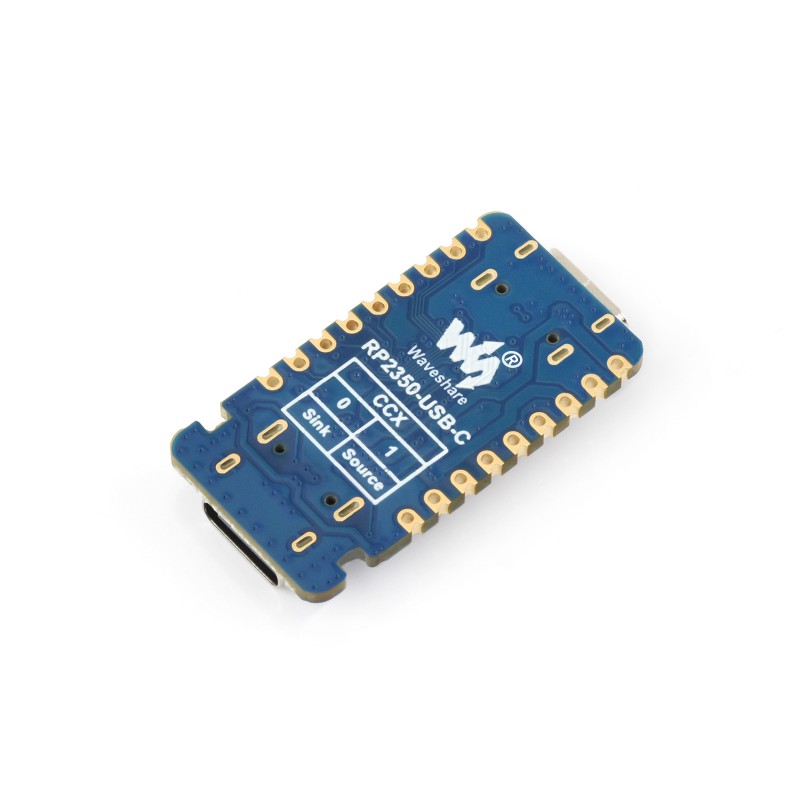

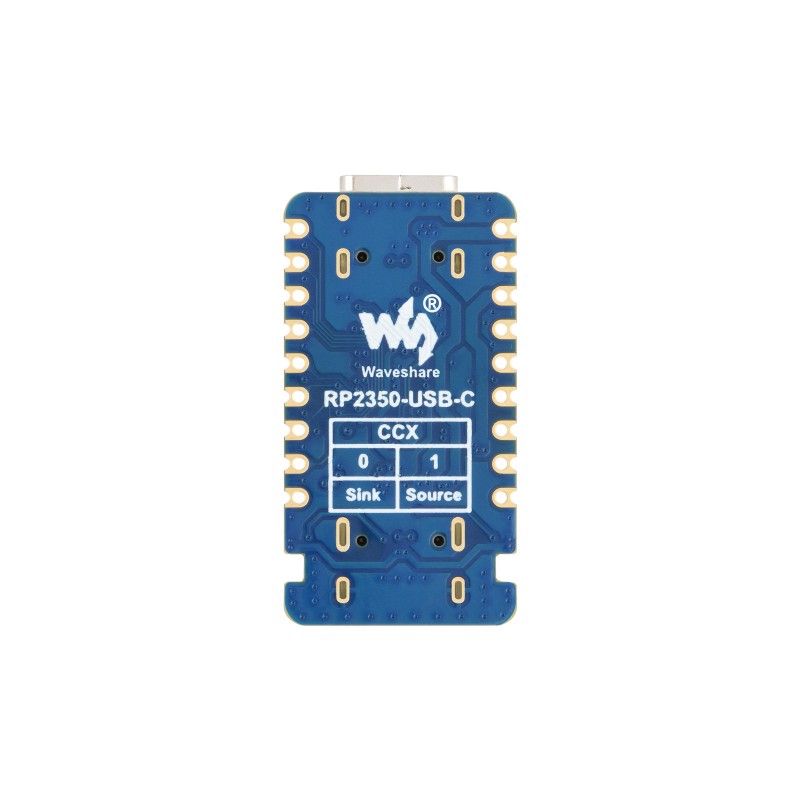

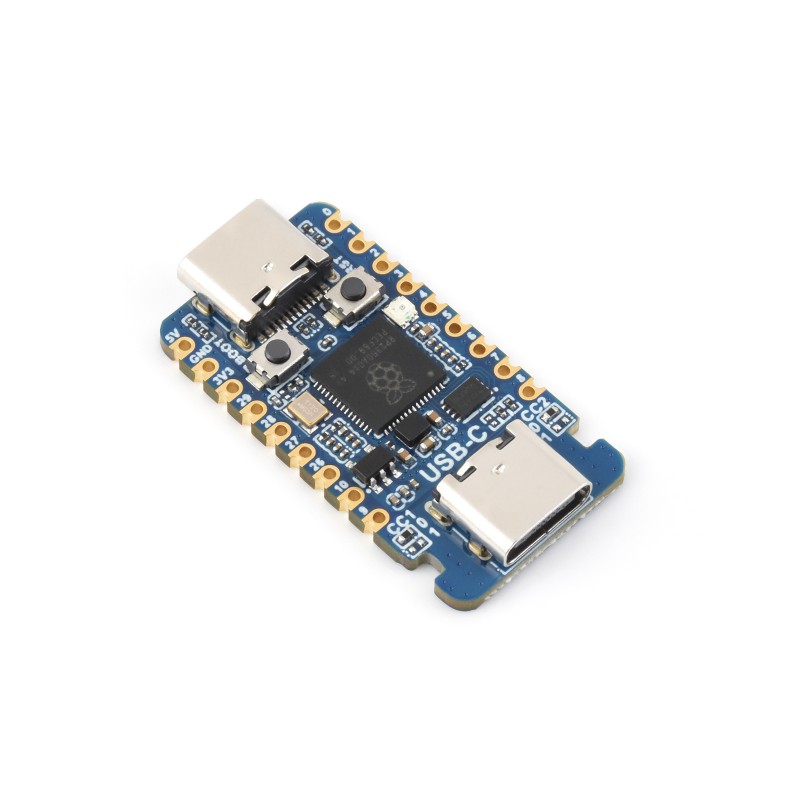

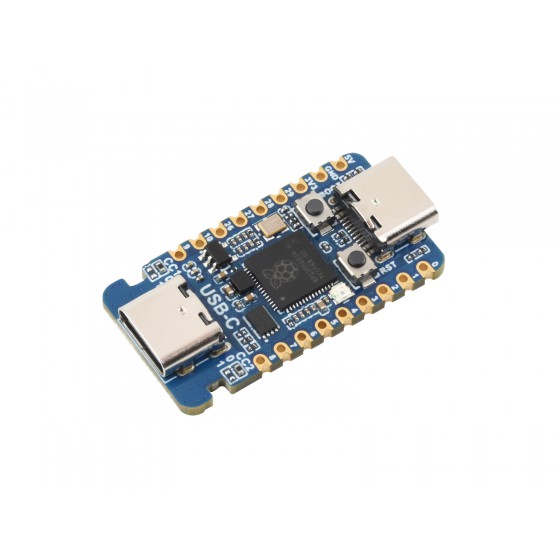

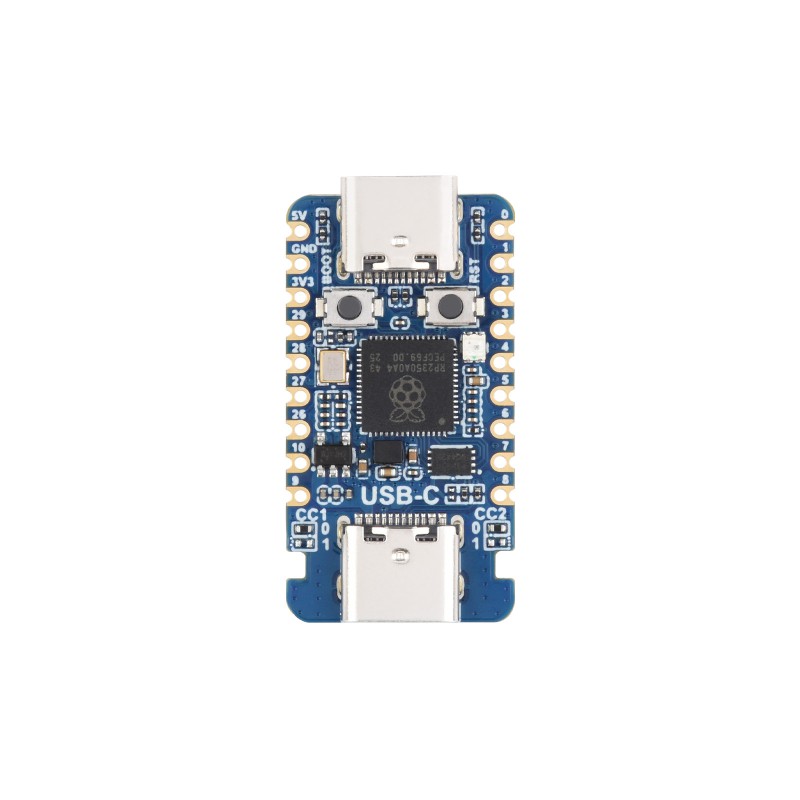

RP2350-USB-C Microcontroller with converter type c to a

Description

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
• Built-in 520KB Static RAM, with onboard 2MB Flash
• Type-C port for easier use
• Supports power supply via Type-C port (PD compatible)
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 15 × multi-function GPIO pins from the RP2350A
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
• Accurate clock and timer on-chip
• Built-in temperature sensor for real-time monitoring of chip temperature
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

The unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard ARM Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
