40 CPR Quadrature Encoder

5.00 د.ك

This simple and affordable quadrature-output encoder fits onto the rear shaft of a motor so its position and velocity can be monitored.

Out of stock

Description

The ENC4109 is an affordable optical quadrature encoder. This device is great for projects that require motor position control.

Features:

  • Compatible with the mounting pattern of the majority of the DC and stepper motors sold by Phidgets
  • Encoder connects to a quadrature encoder interface.

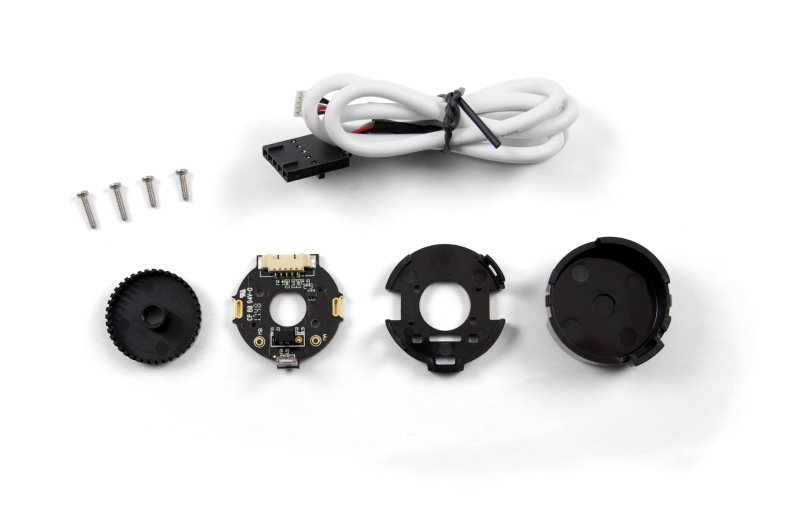

Included with the ENC4109:

ENC4109 Parts

  • 2x 8mm Mounting Screws
  • 2x 6mm Mounting Screws
  • Encoder Wheel, PCB, Base and Cap
  • Encoder Cable

Product Specifications

Encoder Properties
Controlled By Encoder Interface
Output Circuit Type Push-Pull
Encoder Speed Max 6000 RPM
Encoder Resolution 40 CPR
Electrical Properties
Supply Voltage Min 4.2 V DC
Supply Voltage Max 5.5 V DC
Output Frequency Max 12.5 kHz
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
IP Rating IP65
Customs Information
Canadian HS Export Code 9029.10.00
American HTS Import Code 9029.10.80.00
Country of Origin CN (China)
