10 Amp 7V-30V Potentiometer & Switch Control DC Motor Driver

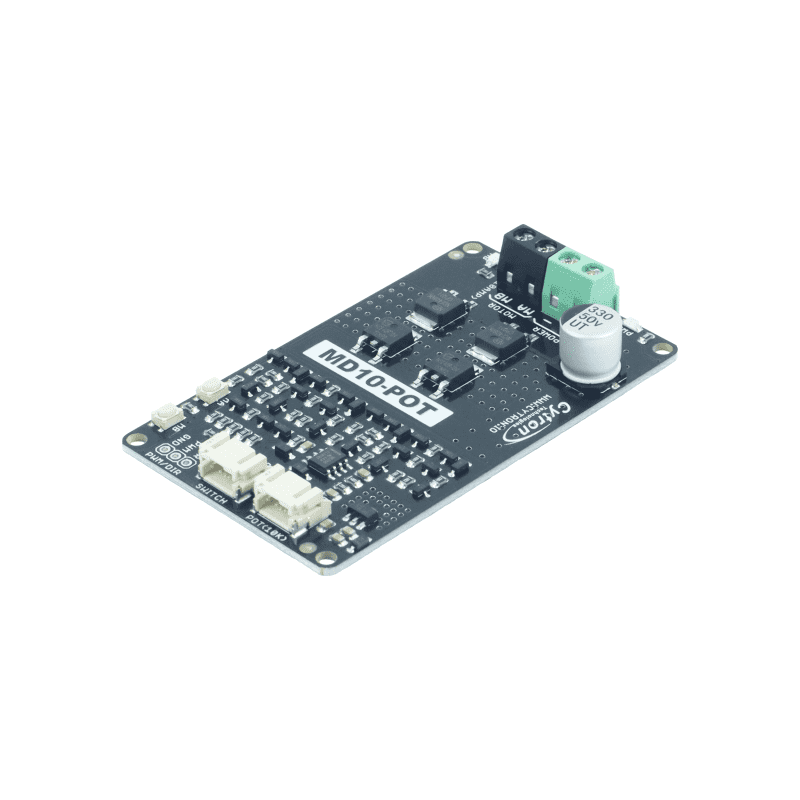

MD10-POT is a motor driver or speed controller that enables you to easily control a motor’s run/brake, direction and speed. No microcontroller is needed in a complete setup, hence programming is not required too. A DC brushed motor can be controlled directly using the Switch (Activation & Direction) and Potentiometer (Speed) included in the package.

Control DC brushed motor’s direction (Clockwise / Counter-clockwise).

Control DC brushed motor’s speed.

Wiring:

• Bidirectional control for one brushed DC motor.
• Control motor run/brake and direction with a 3-way rocker switch (included in package).
• Control motor rotation speed with a potentiometer (included in package).
• Operating Voltage: DC 7V to 30V
• Maximum Motor Current: 10A continuous, 30A peak
• Buttons for quick testing.
• LEDs for motor output state.
• PWM and DIR inputs.
• Compatible with sign-magnitude and locked-antiphase PWM operation.
• Regenerative Braking.
• No reverse polarity protection.
• Dimension: 81.28mm x 48.26mm

• 1 x MD10-POT
• 1 x 10kOhm Potentiometer with connector
• 1 x 3-Way Rocker Switch with connector
• 1 x Quick Start Guide Card

• Datasheet
• Sample Code
• 3D printable case for MD10-POT (STL)
• 3D printable case for MD10-POT (CAD)
