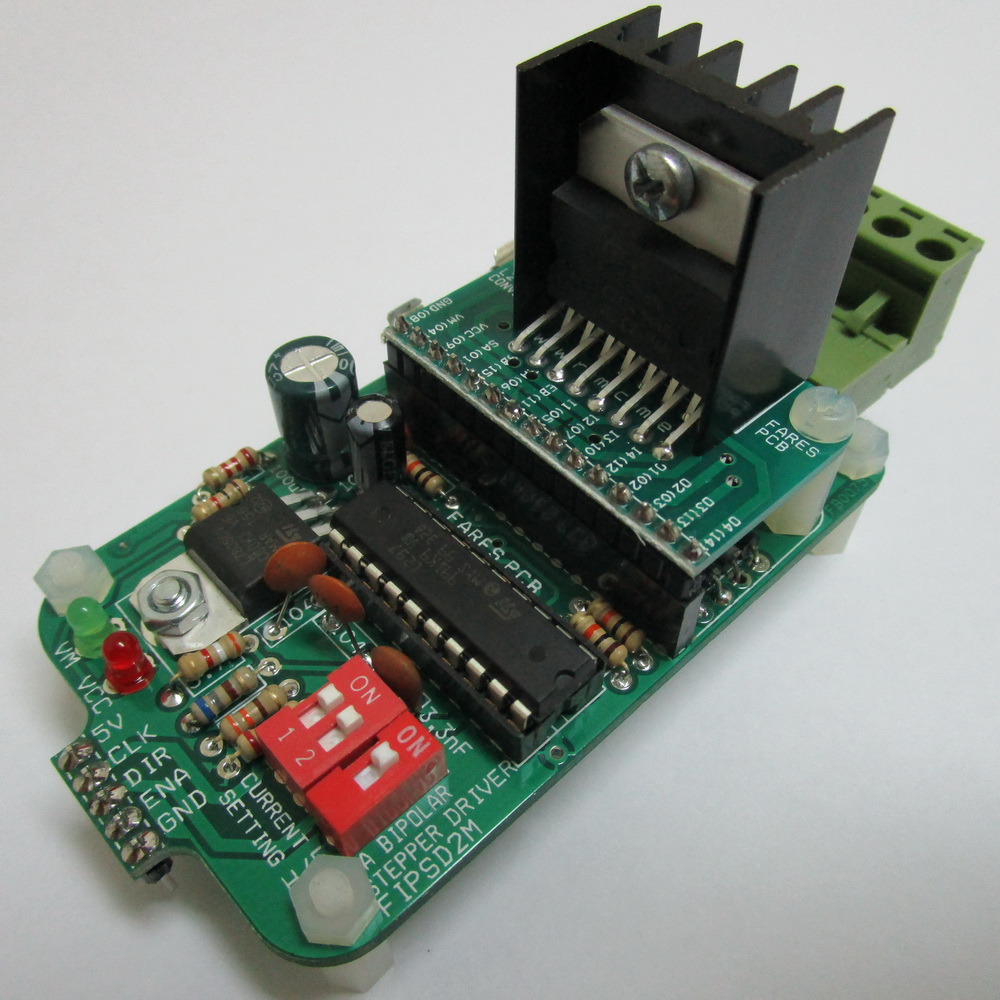

FIPSD2M -dc motor -Stepper motor driver

7.00 KD

SKU: EIT-ROB-003

2 in stock

  • Description
  • Reviews (0)
  • Product Specification

Description

FIPSD2M Features
• DC12-30V single power input.
• Driver card is protected against reversed polarity of power.
• Maximum 2 Amps/phase motor output.
• Step, direction, Enable input TTL compatible control signals.
• Full and half step Resolution.
• 4 adjustable work current levels 25%, 50%, 75%, 100% of the
maximum nominal current 2A.
• Inputs are brought out via pin header connector for flexibility.
• LED indicator for input power “Green LED” for motor power and
“Red LED” for control.
• 1 u sec minimum width for CLK input pulse (500 KHz max).
• Dimension: 96 x 45 x 38 mm.

data sheet

FIPSD2M User Manual
